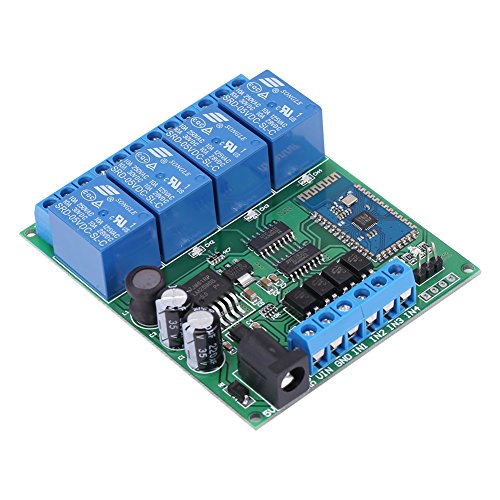

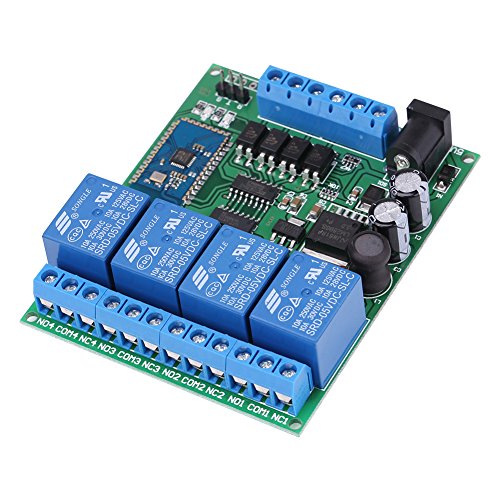

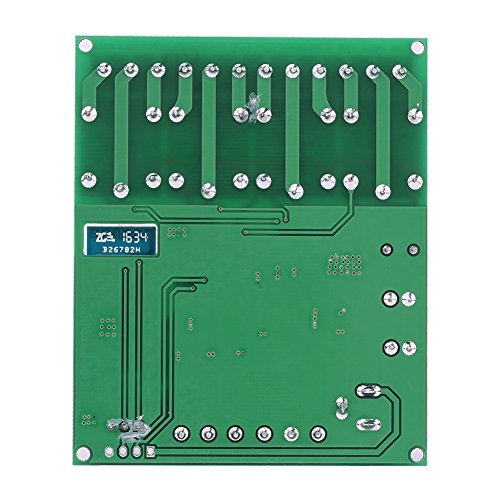

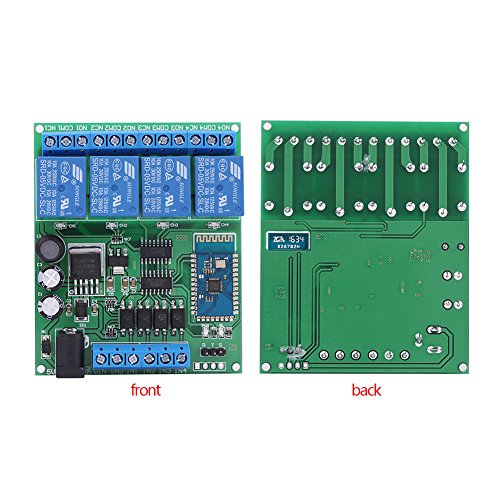

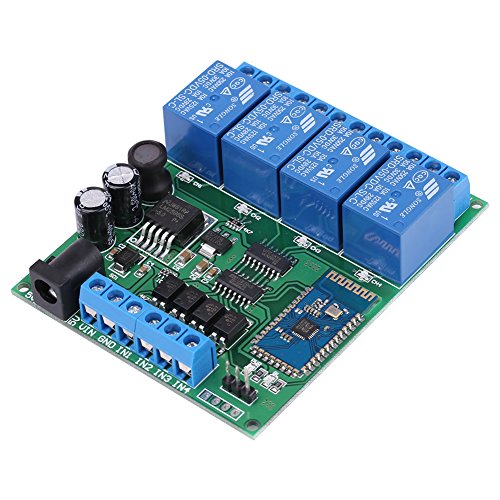

4 Channel Bluetooth Relay Module Phone Wireless Remote Control Switch

Buy now: £18.99

Specifications:

Size: as the picture

Weight: 77g

Communication mode: 2.1 Bluetooth

Communication distance: 6-10 m

Control mode: Bluetooth wireless remote control relay switch

Control port: 4 switches with regular open and close functions

Control voltage: AC 85-265v 10A, DC1-110v 10A

Bluetooth password: 1234

Package Included:

1 x Bluetooth Relay Module

Operating voltage: power supply 1, DC 6.5-25V; power supply 2, DC 5V
Operating Current: Standby current (all relays closed) 13MA, 1 relay open 44MA, 2 relays open 76MA, 3 relays open 109MA, 4 relays open 140MA
Send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)
You can modify the Bluetooth name and PIN(Access Password)through AT commands
External trigger input, photoelectric isolation switch, low pulse inputs
