Specification:
1. 126 channels jumping frequency automatically, high anti-jamming ability, to ensure works reliability
2. Each other in the same place (Tricolor LED displaying Indicators)
3. Max transmitting power rate: 20dBm
4. Receiver Sensitivity: -94dBm
5. CPU: 32-bit ARM Core
6. Modulation: GFSK
7. DMX Signal Interface: RS485
8. Operating temperature: -40 ~ 85 ¡ãC
9. Storage Temperature: -65 ~ 150 ¡ãC
10. Ambient Relative Humidity: 5 to 95% (non-condensing)
11. Automatic Reboot Trigger: Built-in WDT (watchdog timer)
12. Warranty Period: 3 years
Operating manual:
ID code and LED color corresponding relationship£º
1£ºRED
2£ºGREEN
3£ºRED+GREEN
4£ºBLUE
5£ºRED+BLUE
6£ºGREEN+BLUE
7£ºRED+GREEN+BLUE
1.Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC£¬to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3. Working condition£º
LED constant lit up£ºNo DMX or wireless signal.
Red LED flash£ºTransmitting
Green LED flash£ºreceiving
4. RF frequency 2.400 - 2.525G£¬total 126 channels£¬it's searching automatically,
5. ID Code "1-7" groups ID code£¬press 'KEY' for setting£¬it only can work under same ID code of transmitter and receiver. (Same LED Color)

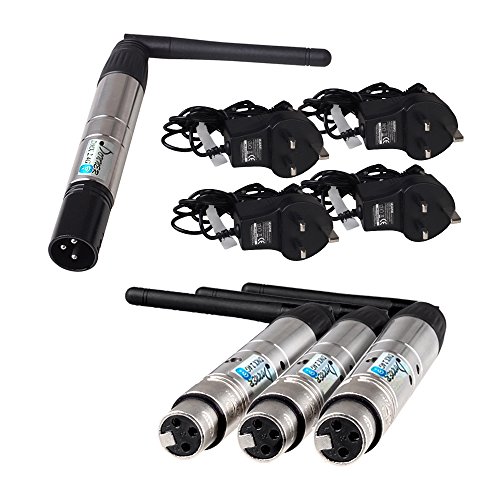

Package included:

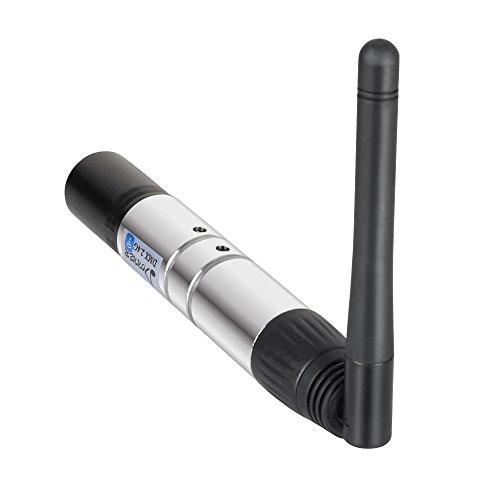

1 x DMX512 wireless transmitter (UK Plug)

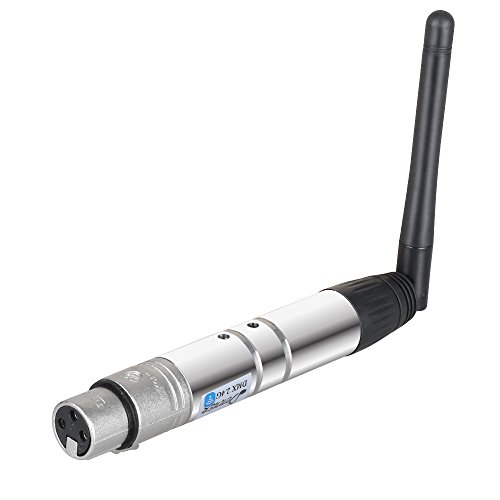

3 x DMX512 wireless receiver (UK Plug)
4 x Power adapter
