Buy now: £63.15

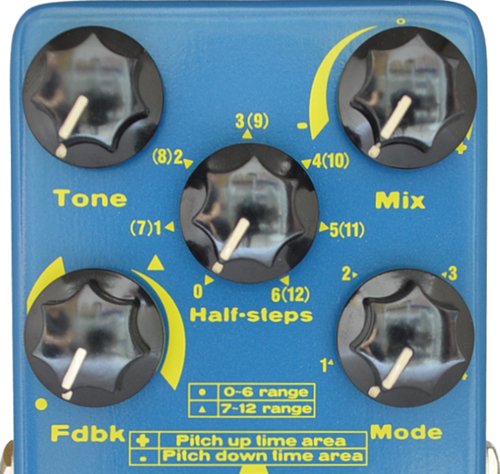

Tone: Tone adjustment
Mix: Adjust the dry/wet ratio "0" means DRY，NO wet ，
turn left "-" controls drop, max=full wet ,
turn right "+" controls raise,max=full wet
FDBK: feedback.
●controls 0-6 semitone,
▲controls 7-12 semitone.
More feedbacks will be produced with identifier going from the sharp end to the wide end
Half-steps:
"0" means no changes.
When it goes to "()", to make it function,
FDBK has to be at ▲controlling area;
when it's out of "()", to make it function,
FDBK has to be at ● controling area.
MODE:4 different models
Use feedback and (or) delay to build the transposition of cascade effects so as to produce two sounds on different time point
0 perfect unison
1 minor second
2 major second
3 minor third
4 major third
5 perfect fourth
6 aug fourth/dim fifth
7 perfect fifth
8 minor sixth
9 major sixth
10 minor seventh
11 major seventh
12 perfect octave
The digital effector needs to be best connected by Amp's FX Loop port.
Electronic parameters:
Working voltage: DC9V
Chip inner voltage: 1.8V
Chip outter voltage: 3.3V
ADC SNR: 90dB
DAC SNR: 100dB
Battery: self-provided
Case material: aluminum alloy
Item weight(g): 285
Item size(mm): 120x65x50
Packing weight(g): 400
Packing size(mm): 145x90x60
Video link
https://www.youtube.com/watch?v=Vk8MhWa0VrY&t=6s
